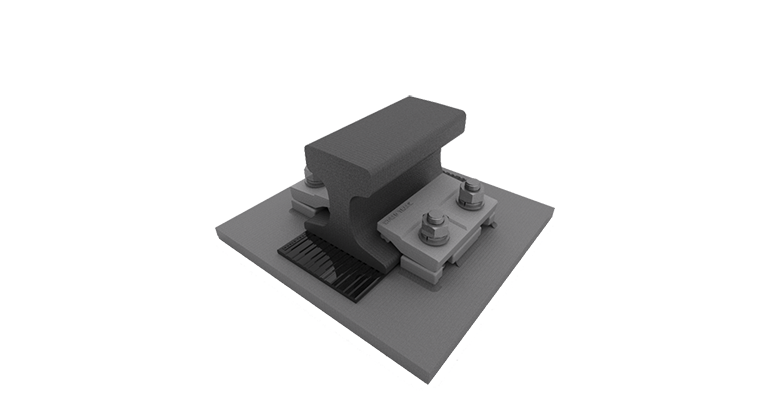

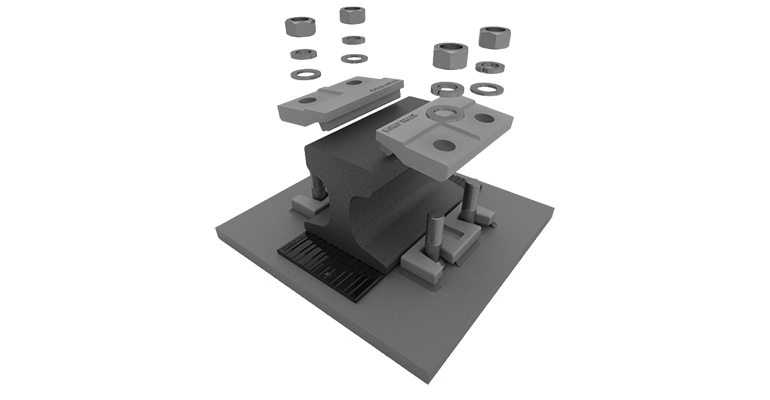

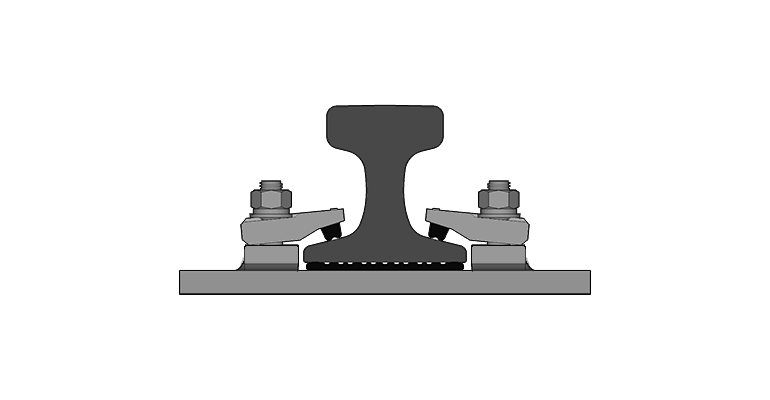

레일을 하부와 고정시키기 위해 사용하는 부품으로 용접이나 볼트와 너트를 이용하여 설치가 가능합니다.
저희 월드트렉(주)에서는 여러 타입의 크립을 보유중이며, 계속해서 새로운 제품을 개발하고 있습니다.
등록되지 않은 크립도 031-989-2380 으로 문의 주시면 친절하게 상담해드리겠습니다.
| 사용레일 | 패드 | 모델명 (도면명) | ||
|---|---|---|---|---|
| 종류 | 품명 | |||
| JIS | 30A | O | 30/DDR-PY-T2/3022(14) (C/DDR-005) | |
| X | 30/DDR-PN-T2/3022(18) (C/DDR-010) | |||
| 37A | O | 37/DDR-PY-T2/3022(13) (C/DDR-015) | ||
| X | 37/DDR-PN-T2/3022(18) (C/DDR-020) | |||
| O | 37/DDR-PY-T1/2720(16) (C/DDR-025) | |||
| 50N | X | 50/DDR-PN-T2/3022(16) (C/DDR-030) | ||
| O | 50/DDR-PY-T3/3625(16) (C/DDR-035) | |||
| O | 50/DDR-PY-T1/2725(16) (C/DDR-045) | |||
| X | 50/DDR-PN-T1/2720(18) (C/DDR-050) | |||
| 60K | X | 60/DDR-PN-T2/3022(13) (C/DDR-055) | ||
| O | 60/DDR-PY-T3/3625(15) (C/DDR-060) | |||
| X | 60/DDR-PN-T3/3625(21) (C/DDR-065) | |||
| O | 60/DDR-PY-T1/2725(14) (C/DDR-070) | |||
| X | 60/DDR-PN-T1/2725(21) (C/DDR-075) | |||
| X | 60/DDR-PN-T1/2720(16) (C/DDR-080) | |||
| CR | 73 | X | 73/DDR-PN-T2/3022(12) (C/DDR-085) | |
| O | 73/DDR-PY-T3/3625(14) (C/DDR-090) | |||
| O | 73/DDR-PY-T1/2725(13) (C/DDR-095) | |||
| X | 73/DDR-PN-T1/2725(20) (C/DDR-100) | |||
| X | 73/DDR-PN-T1/2720(15) (C/DDR-105) | |||
| 100 | O | 100/DDR-PY-T3/3625(09) (C/DDR-110) | ||
| X | 100/DDR-PN-T3/3625(16) (C/DDR-115) | |||
| X | 100/DDR-PN-T1/2725(16) (C/DDR-120) | |||
| DIN | A65 | O | 65/DDR-PY-T2/3022(13) (C/DDR-125) | |
| X | 65/DDR-PN-T2/3022(18) (C/DDR-130) | |||
| A75 | O | 75/DDR-PY-T2/3022(10) (C/DDR-135) | ||
| X | 75/DDR-PN-T2/3022(17) (C/DDR-140) | |||
| O | 75/DDR-PY-T3/3625(18) (C/DDR-145) | |||
| O | 75/DDR-PY-T1/2725(18) (C/DDR-150) | |||
| A100 | X | 100/DDR-PN-T2/3022(16) (C/DDR-155) | ||
| O | 100/DDR-PY-T3/3625(17) (C/DDR-160) | |||
| O | 100/DDR-PY-T3/2725(18) (C/DDR-165) | |||
| X | 100/DDR-PN-T1/2720(19) (C/DDR-170) | |||
| A120 | X | 120/DDR-PN-T2/3022(14) (C/DDR-175) | ||
| O | 120/DDR-PY-T3/3625(14) (C/DDR-180) | |||
| X | 120/DDR-PN-T3/3625(22) (C/DDR-185) | |||
| O | 120/DDR-PY-T1/2725(14) (C/DDR-190) | |||
| X | 120/DDR-PN-T1/2720(16) (C/DDR-195) | |||
| A150 | O | 150/DDR-PY-T3/3625(12) (C/DDR-200) | ||
| X | 150/DDR-PN-T3/3625(19) (C/DDR-205) | |||
| O | 150/DDR-PY-T1/2725(12) (C/DDR-210) | |||
| X | 150/DDR-PN-T1/2725(19) (C/DDR-215) | |||
| X | 150/DDR-PN-T1/2720(14) (C/DDR-220) | |||
