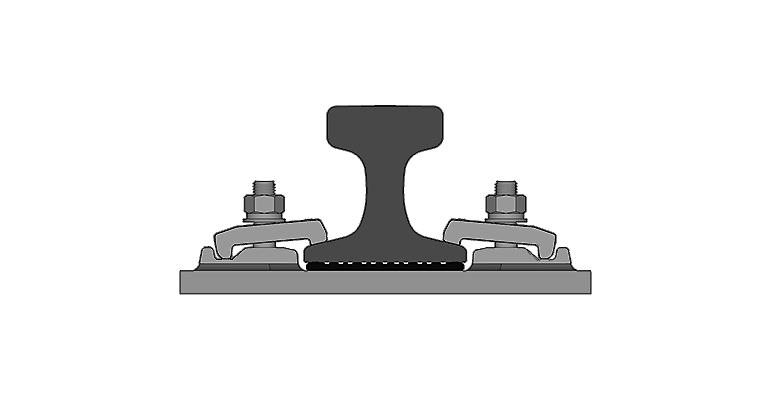

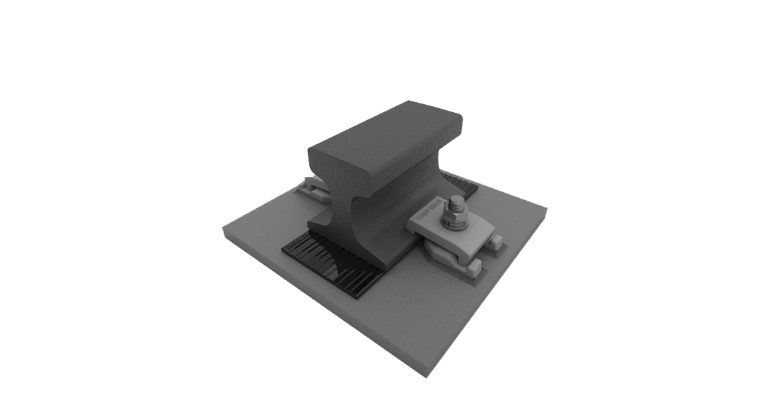

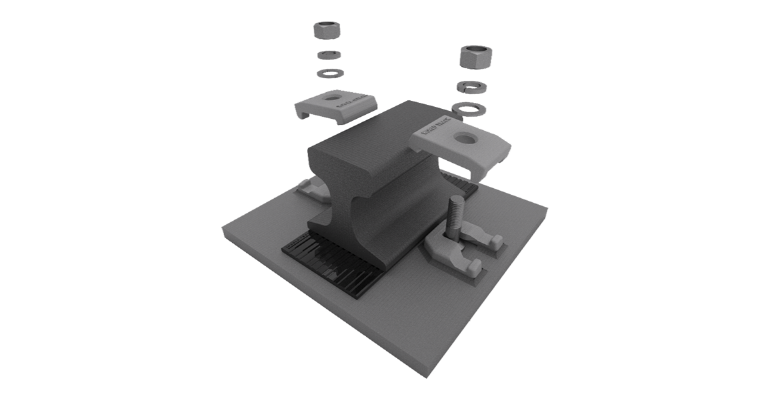

레일을 하부와 고정시키기 위해 사용하는 부품으로 용접이나 볼트와 너트를 이용하여 설치가 가능합니다.
저희 월드트렉(주)에서는 여러 타입의 크립을 보유중이며, 계속해서 새로운 제품을 개발하고 있습니다.
등록되지 않은 크립도 031-989-2380 으로 문의 주시면 친절하게 상담해드리겠습니다.
| 사용레일 | 패드 | 모델명 (도면명) | ||
|---|---|---|---|---|
| 종류 | 품명 | |||
| JIS | 30A | O | 30/DS-PY-T2/2316 (C/DS-005) | |
| X | 30/DS-PN-T2/2316 (C/DS-010) | |||
| O | 30/DS-PY-T1/2627 (C/DS-015) | |||
| X | 30/DS-PN-T1/2619 (C/DS-020) | |||
| 37A | O | 37/DS-PY-T2/2316 (C/DS-025) | ||
| X | 37/DS-PN-T2/2316 (C/DS-030) | |||
| O | 37/DS-PY-T1/2627 (C/DS-035) | |||
| X | 37/DS-PN-T1/2619 (C/DS-040) | |||
| 50N | O | 50/DS-PY-T2/3020 (C/DS-050) | ||
| X | 50/DS-PN-T2/3020 (C/DS-055) | |||
| O | 50/DS-PY-T1/2524 (C/DS-060) | |||
| X | 50/DS-PN-T1/2521 (C/DS-065) | |||
| O | 50/DS-PY-T1/2222 (C/DS-070) | |||
| X | 50/DS-PN-T1/2722 (C/DS-075) | |||
| 60K | O | 60/DS-PY-T2/3020 (C/DS-080) | ||
| X | 60/DS-PN-T2/3020 (C/DS-085) | |||
| O | 60/DS-PY-T1/2528 (C/DS-090) | |||
| O | 60/DS-PY-T1/2524 (C/DS-095) | |||
| X | 60/DS-PN-T1/2521 (C/DS-100) | |||
| X | 60/DS-PN-T1/2222 (C/DS-105) | |||
| O | 60/DS-PY-T1/2226 (C/DS-110) | |||
| X | 60/DS-PN-T1/2626 (C/DS-115) | |||
| O | 60/DS-PY-T1/3026 (C/DS-120) | |||
| CR | 73 | O | 73/DS-PY-T2/3020 (C/DS-125) | |
| X | 73/DS-PN-T2/3020 (C/DS-130) | |||
| O | 73/DS-PY-T1/2532 (C/DS-135) | |||
| O | 73/DS-PY-T1/2528 (C/DS-140) | |||
| X | 73/DS-PN-T1/2524 (C/DS-145) | |||
| X | 73/DS-PN-T1/2222 (C/DS-155) | |||
| O | 73/DS-PY-T1/2226 (C/DS-160) | |||
| X | 73/DS-PN-T1/2626 (C/DS-165) | |||
| O | 73/DS-PY-T1/3026 (C/DS-170) | |||
| X | 73/DS-PN-T1/3026 (C/DS-175) | |||
| 100 | O | 100/DS-PY-T2/3020 (C/DS-180) | ||
| X | 100/DS-PN-T2/3020 (C/DS-185) | |||
| O | 100/DS-PY-T1/2532 (C/DS-190) | |||
| X | 100/DS-PN-T1/2528 (C/DS-195) | |||
| X | 100/DS-PN-T1/2524 (C/DS-200) | |||
| X | 100/DS-PN-T1/2226 (C/DS-205) | |||
| O | 100/DS-PY-T1/2426 (C/DS-210) | |||
| X | 100/DS-PN-T1/3026 (C/DS-215) | |||
| DIN | A45 | O | 45/DS-PY-T2/2316 (C/DS-220) | |
| X | 45/DS-PN-T2/2316 (C/DS-225) | |||
| A55 | O | 55/DS-[Y-T2/2316 (C/DS-230) | ||
| X | 55/DS-PN-T2/2316 (C/DS-235) | |||
| A65 | O | 65/DS-PY-T2/2316 (C/DS-240) | ||
| X | 65/DS-PN-T2/2316 (C/DS-245) | |||
| A75 | O | 75/DS-PY-T2/2316 (C/DS-250) | ||
| X | 75/DS-PN-T2/2316 (C/DS-255) | |||
| O | 75/DS-PN-T1/2222 (C/DS260) | |||
| X | 75/DS-PN-T1/2722 (C/DS-265) | |||
| A100 | O | 100/DS-PY-T2/3020 (C/DS-270) | ||
| X | 100/DS-PN-T2/3020 (C/DS-275) | |||
| O | 100/DS-PY-T1/2222 (C/DS-280) | |||
| X | 100/DS-PN-T1/2722 (C/DS-285) | |||
| A120 | O | 120/DS-PY-T2/3020 (C/DS-290) | ||
| X | 120/DS-PN-T2/3020 (C/DS-295) | |||
| O | 120/DS-PY-T1/2532 (C/DS-300) | |||
| O | 120/DS-PN-T1/2528 (C/DS-305) | |||
| X | 120/DS-PN-T1/2520 (C/DS-310) | |||
| O | 120/DS-PN-T1/2226 (C/DS-315) | |||
| X | 120/DS-PN-T1/2626 (C/DS-320) | |||
| A150 | O | 150/DS-PY-T2/3020 (C/DS-325) | ||
| X | 150/DS-PN-T2/3020 (C/DS-330) | |||
| O | 150/DS-PY-T1/2532 (C/DS-335) | |||
| O | 150/DS-PY-T1/2528 (C/DS-340) | |||
| X | 150/DS-PN-T1/2524 (C/DS-345) | |||
| O | 150/DS-PY-T1/2226 (C/DS-350) | |||
| X | 150/DS-PN-T1/2626 (C/DS-355) | |||
| O | 150/DS-PY-T1/2426 (C/DS-360) | |||
