SBR Clip |
|
| Go to List | Contanct |

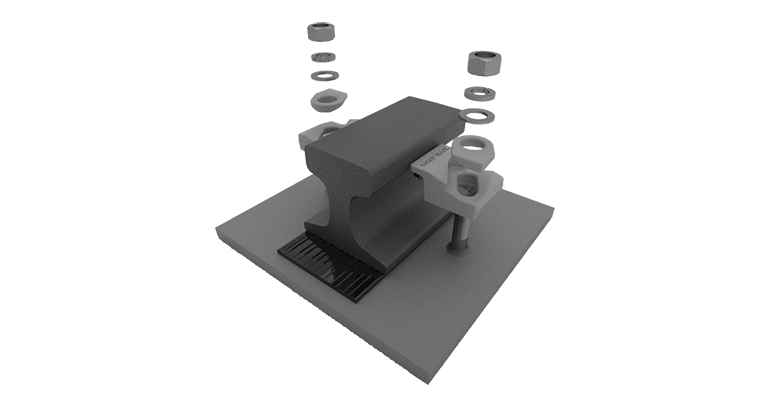

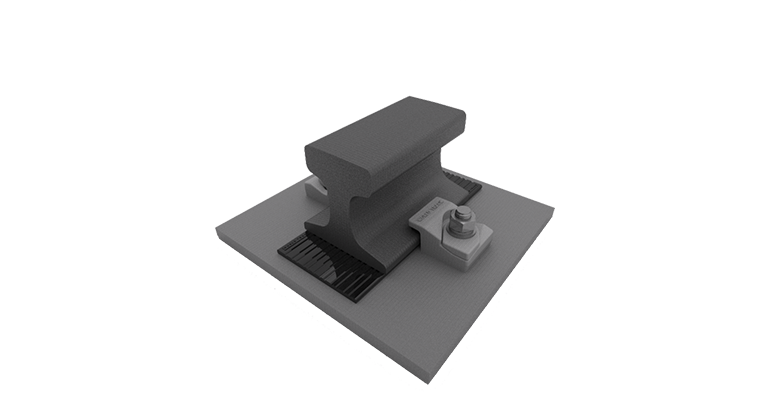

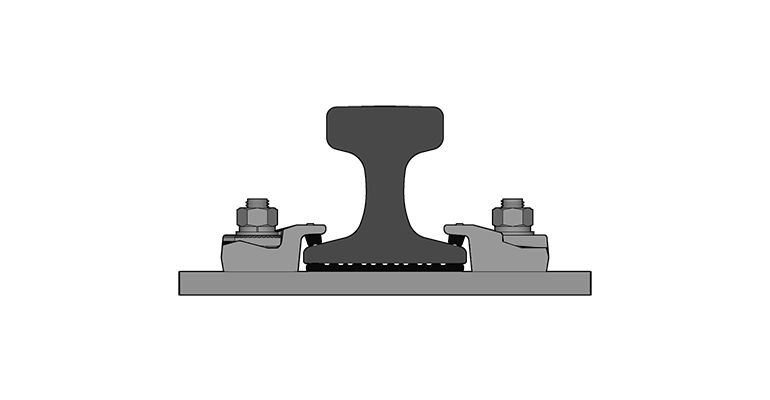

It is a part used to fix the rail to the bottom and can be installed by welding or using bolts and nuts.
Our WorldTrek Co., Ltd. has several types of cribs and continues to develop new products.
SBR Clip |
|
| Go to List | Contanct |
If you contact us at +82 31-989-2380
we will kindly consult you.
| Rail | Pad | Model (Drawing Number) | ||
|---|---|---|---|---|
| Standard | Name | |||
| JIS | 37A | O | 37/SBR-PY-T1/40(22) (C/SBR-020) | |
| 50N | O | 50/SBR-PY-T1/40(17) (C/SBR-025) | ||
| 60K | O | 60/SBR-PY-T1/40(16) (C/SBR-030) | ||
| X | 60/SBR-PN-T1/40(22) (C/SBR-035) | |||
| CR | 73 | O | 73/SBR-PY-T1/40(15) (C/SBR-040) | |
| X | 73/SBR-PN-T1/40(21) (C/SBR-045) | |||
| 100 | O | 100/SBR-PY-T1/40(11) (C/SBR-050) | ||
| X | 100/SBR-PN-T1/40(17) (C/SBR-055) | |||
| DIN | A75 | O | 75/SBR-PY--T1/40(18) (C/SBR-060) | |
| A100 | O | 100/SBR-PY-T1/40(17) (C/SBR-065) | ||
| A120 | O | 120/DDR-PY-T1/40(15) (C/SBR-070) | ||
| X | 120/SBR-PN-T1/40(21) (C/SBR-075) | |||
| A150 | O | 150/SBR-PY-T1/40(14) (C/SBR-080) | ||
| X | 150/SBR-PN-T1/40(20) (C/SBR-085) | |||
